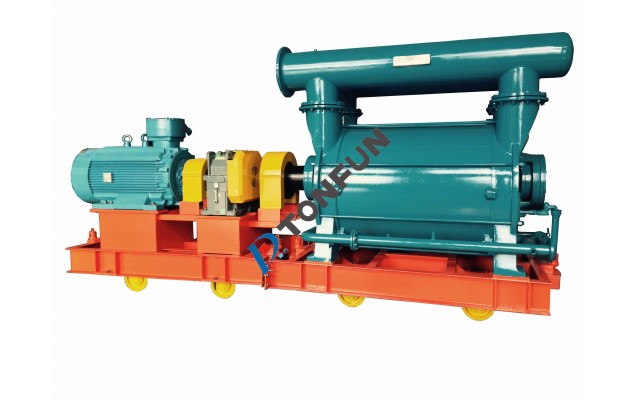

ZWY TYPE MOBILE PUMP

产品介绍
The ZWY mobile gas drainage pump is special safety equipment used in coal mine for gas drainage. This product is in line with the requirements of related regulations of mine explosion-proof electrical equipment manufacturing, integrating gas detection and control, with complete safety protection means, and widely used in coal mine gas drainage and gas outburst prevention. It is one of the most important equipment for coal mine safety production
产品特点
1. The equipment is equipped with energy-saving liquid ring vacuum pump which is highly efficient and energy-saving;
2. Automatic detection of gas concentration, alarm of overconcentration and automatic stop;
3. Internal cooling water protection device is installed to ensure the safe operation of liquid ring vacuum pump; once the water is cut off, the pump will stop automatically with high sensitivity.
4. Equipped with steam separator to automatically control the liquid level;
5. Motor startup is provided with protection of over-voltage, over-current, overheating and missing.
6. The air inlet is equipped with a protective screen to prevent sundries from entering the pump;
7. The pipeline gas detector is designed to realize uninterrupted detection, which can prevent the existing form and amount of gas emitted in the mining area.
应用领域
Coal mine: mine gas drainage
型号说明

For example: ZWY 60/90-g

ZWY- mine mobile gas pumping station

60- maximum pumping capacity (m3/min)

90- matching motor power (KW)

G- chassis: G- rail, P - plate
