  • 2BE1 TYPE LIQUID RING VACUUM PUMP

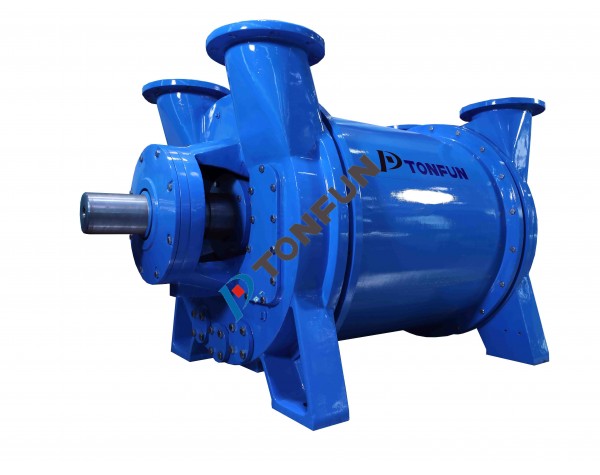

2BE1 TYPE LIQUID RING VACUUM PUMP

Category:

Brief introduction:2BE1 series liquid ring vacuum pump is a high-efficiency and energy -saving product introduced from Siemens Germany. It is of single stage and single action structure. The working medium is normal temperature water, which is usually used to suck insoluble water, free of solid particles and non-corrosive gases, forming a vacuum in the pumping system. Over the years, on the basis of constantly summarizing the design and manufacturing experience, our company has greatly improved and perfection the structure, performance and complete sets of equipment, making the products more advanced, reasonable and energy-saving, and greatly improving the operation efficiency and complete sets of functions of the unit. The temperature of the sucked gas is 10℃~ +40℃, and working temperature is 0 ℃~35℃.

National Advisory Service Hotline:400-998-2348

PurchaseConsulting

  • product description
一、Features:
1. Strong pumping capacity: the impeller and distributor are optimized to increase the suction and exhaust area
2. Efficient operation: gas is drawn and discharged evenly along the distribution plate; The vent equipped with flexible valve plate can automatically adjust the exhaust Angle to avoid over-compression or under-compression.
3. Anti-cavitation strength: equipped with anti-cavitation device, and the distributor also has corresponding cavitation holes.
4. Strong adaptability: when over current parts are sprayed with polymer coating or over current surface is sprayed with non-metallic material layer (our company's patent), it can meet very harsh anti-corrosion requirements; At the same time, its smooth surface can effectively reduce the sediment of the ash and slow down the scaling process.
二、Model Description:

Single pump model representation method:
1 2 3 4 5  6   7   8
2 B E 1 □  □  □ -□
1 2 3 4 ---- Single stage liquid ring vacuum pump
5 6 ----Nominal radius of impeller (cm)
7  ---- Vane width diameter ratio code
8  ----Minimum suction absolute pressure

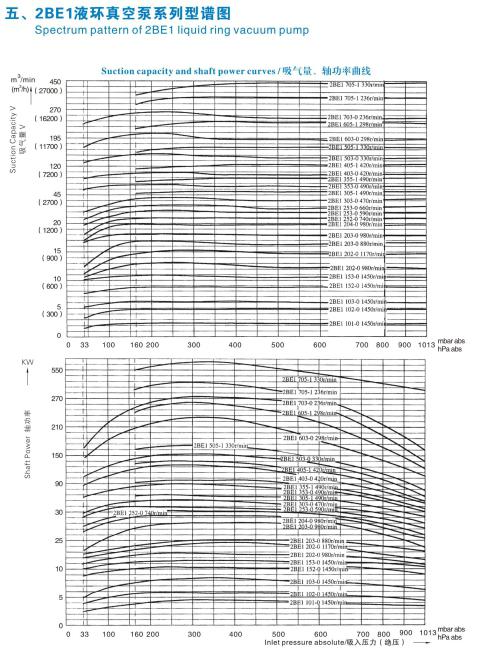

三、Spectrogram:

四、Application field:
Power industry: negative pressure transmission, condenser vacuum
Coal industry: gas drainage, vacuum dehydration
Petrochemical industry: gas pressure, vacuum system
Paper industry: vacuum dehydration
Iron and steel metallurgy: vacuum dewatering
Cigarette industry: cigarette machine negative pressure system, vacuum moisture-proof
